Compact Code Reader with Multiple Functions – CleverReader for 1-D, 2-D, DPM, and High-Speed Reading
The CleverReader stationary 1-D/2-D code reader detects codes with maximum reliability, allows flexible configuration, and offers an excellent price-performance ratio. It is capable of high-speed reading and DPM code reading. Simple integration and intuitive operation make it the ideal solution in areas such as packaging, logistics, and microelectronics.
The sensor technology reliably reads all common 1-D and 2-D codes, even on reflective surfaces and displays. With its compact design, an RS-232 interface, and a 24 V/5 V converter cable with trigger connection, it is easy and flexible to integrate. Parameterization is performed conveniently using control codes on the device or on the intuitive graphical user interface.

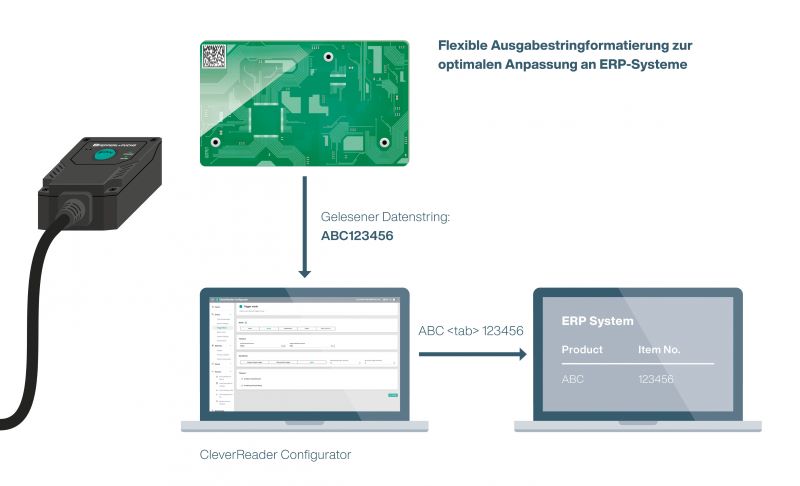

The output string can be adapted to feed the reading result directly into the ERP system. Additional functions such as automatic error image memory, match code, and various reading modes extend the range of applications. The high-performance version VOI1100 recognizes codes in motion up to 3.5 m/s as well as directly applied codes (Direct Part Marking, DPM); the basic version VOI1000 reads reliably in static applications. Its unique price-performance ratio makes the CleverReader a particularly cost-effective solution in its class.
